IMPROVED CIRCUIT DESIGN
To prevent circuit shutdown, Pioneer’s new digital amplifier circuit “Protection Control System” senses its internal temperature and automatically moderates input level accordingly. Stable, durable circuitry lessens the risk of high input power for the unit to achieve 1 Ω connection.

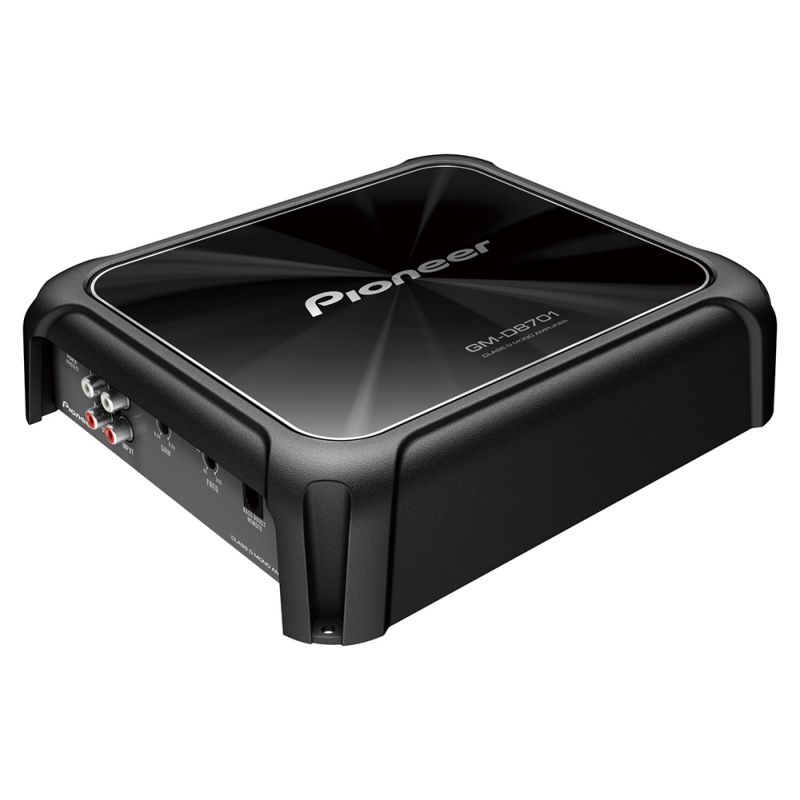

This design enhances the flexibility to connect multiple subwoofers to a system. For extra flexibility, variable LPF make audio frequency more adjustable according to subwoofer characteristics and personal listening preferences. The GM-D8701 LPF is adjustable from 40 Hz to 240 Hz.
TURN UP THE BASS
Every new Pioneer Class-D amplifier has a wired bass boost remote control for optimal bass level adjustment according to listening preferences and music characteristics.
Technical Specification Number of channels 1 Max.
Wattage (4Ω) Max.
Wattage (2Ω) Max.
Wattage Bridged (4Ω)
Frequency Response 10Hz – 240kHz
Wattage RMS (4Ω 100 dB RCA Outputs (Pass-Through)
2 Ch Speaker Level Input 2 ch
Automatic Signal Sensing & Turn On Yes
Crossover Type Variable LPF Crossover
Frequency 40Hz – 240Hz Dimensions 252 x 215 x 60 (mm)
